QX210 M2M Industrial 4G Cellular IoT Modem/Router

QX210 is a compact, cost-effective and powerful industrial router for professional applications. Router delivers high performance for mission-critical cellular communication.

QX210 Equiped with external SIM holder and signal strength status LEDs, it ensures easy network management. External antenna connectors make it possible to attach desired antennas and to easily find the best signal location. Rugged housing and hardware & software make it reliable working under harsh environment.

// QX210 is an all-time bestseller industrial 4G LTE Wi-Fi router for professional M2M & IoT applications.

// It delivers high performance for mission-critical cellular communication in rigorous environments.

// QX210 is widely used for 4G main/backup internet source, Remote/Schedule Reboot, Advanced VPN, and tunneling services in IoT & M2M networking solutions.

// WAN failover ensures automatic switch to alternative backup connection in case of any connectivity issues.

// The Wi-Fi is functional in both: Access point and Station(Client) mode at the same time.

// Support Customized and OEM/ODM service.

Industrial Grade Design, High-Performance And Compatible

– Adopt industrial grade high speed 4G wireless communication module and industrial 32 bits CPU, increase in FLASH & RAM, improve data transmission speed and reliability.

Flexible Deployment

– Full bands support Golbal major operators’ network of TD-LTE, FDD-LTE, TD-SCDMA, WCDMA, EVDO, 3G/4G,etc, project operator can choose more convenient and economical network and flow rates according to the operation’s requirement.
– All in one solutions competible with multiple industrial project requirement, it support Wired Ethernet, WiFi, Serial RS232/485 (pass through, Modbus TCP/RTU, MQTT protols).

Powerful Functions And Reliable Performance

– Watchdog in both hardware and software, failover and backup to keep networks always online, it run continuous internet connect for 425+ days without breakdown in client’s practice.
– Multiple VPN clients modes to make sure the security and accuracy of data transmission and management, supports APN/VPDN, IPSEC, PPTP, L2TP, GRE, OPENVPN, N2N etc.,
– Remote Management System (Cloud Platform) enhance project batch devices’ management ability, provide remote online monitoring, configuration, upgrade, reboot, log query, parameter backup. Significantly reduce maintenance costs of operators, system integrators, equipment providers, improving the efficiency of management.

Ideal For Multiple Applications

– Adapting to high and low temperature, moisture-proof and lightening protection, able to work stably in harsh environment. High level of EMC anti-interference design, work in strong electromagnetic interference environment.
– Easily implement in M2M and IoT applications such as Bus WiFi, Fleet Management, Finance, Postal, ATM, Smart Express Locker, Smart Grid, Vending Machine, Oil&Gas Well, Industrial Automation, CCTV, Charging Station, Digital Signage, Flow Meter, Sensors, Alarm System, etc.

All In One Solution Package

– Product package includes modem/router, cellular and WiFi antenna, Ethernet cable, power adapter/power supplier cable, Installation Quick Guide.
– Online engineer service support for any client’s assistance request.
– OEM/ODM service.
– Full accessories is convenient for any system integration projects.

Product Inquiry




    MOBILE
    Mobile module 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
    Status Signal strength (RSSI), SINR, RSRP, RSRQ, EC, IP Address, DNS, ICCID, IMEI, IMSI, RSCP Bytes sent/received
    Bridge Direct connection (bridge) between mobile ISP and device on LAN
    Passthrough Router assigns its mobile WAN IP address to another device on LAN
    APN Auto APN
    SMS Customized
    Multiple PDN (optional) Possibility to use different PDNs for multiple network access and services
    WIRELESS
    Wireless mode IEEE 802.11b/g/n, Access Point (AP), Station (STA, Client)
    WiFi WPA2-Enterprise (with external/internal Radius server), WPA2-PSK, WPA-PSK, WEP, MAC Filter
    WiFi security WPA2-Enterprise - PEAP, TLS, TTLS, AES-CCMP, TKIP, Auto Cipher modes, Client separation
    SSID SSID stealth mode and access control based on MAC address
    WiFi users Up to 30 simultaneous connections
    Wireless Hotspot Captive portal (Hotspot), built in customizable landing page
    ETHERNET
    WAN 1 x WAN port (can be configured to LAN) 10/100 Mbps, comply IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
    LAN 1 x LAN port, 10/100 Mbps, comply IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
    NETWORK
    Routing Static routing, Dynamic routing
    Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, TLS, ARP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet, MQTT
    VoIP passthrough support SIP-alg protocol NAT helpers
    Connection monitoring Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection
    Firewall Port forward, traffic rules, custom rules, Domain filter, Keyword filter
    DHCP Static and dynamic IP allocation
    QoS Traffic priority queuing by source/destination, service, protocol or port
    DMZ External network node can access only what is exposed in the DMZ, while the rest of the organization's network is firewalled
    DDNS Support DDNS tool
    Network backup Mobile, Wired and WiFi WAN options, each of which can be used as backup, using automatic Failover
    Load balancing Balance your internet traffic over multiple WAN connections
    SECURITY
    Authentication Pre-shared key, digital certificates, X.509 certificates
    Firewall Pre-configured firewall rules can be enabled via web-ui, unlimited firewall configuration via CLI; DMZ; NAT
    WiFi security WPA2-Enterprise – PEAP, EAP-TLS, TLS, TTLS. AES-CCMP, TKIP, Auto Cipher modes, Client separation
    WEB filter Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only
    Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter
    VPN
    Mode Client service
    Protocols GRE, PPTP, L2TP, IPsec, EOIP, N2N, OpenVPN
    LOCATION TRACKING (optional)
    GNSS GPS, BEIDOU, GPS, BEIDOU, GLONASS
    Coordinates GNSS coordinates via WebUI, RMS
    NMEA NMEA 0183
    Location Based Service Location without using GPS, get approximate location based on mobile tower
    Device ID location data sending with ID to Identify it come from which device
    SERIAL
    RS232/RS485 3 pin industrial socket, 300-115200 baud rate
    Serial functions Serial over IP, Serial to Ethernet, DTU, Modem, Modbus gateway
    Transparent transmission Mode: TCP Server/Client, UDP Server/Client, RealCom, UDP Range, UDP Multicast, Pair Master/Slave
    MODBUS
    Support Modbus RTU Master/Slave, Modbus TCP Master/Slave, Modbus RTU to Modbus TCP, Modbus TCP to Modbus RTU transfer
    MODBUS TCP SLAVE
    ID range 1-255
    Allow Remote Access Allow access through WAN
    MODBUS TCP MASTER
    Supported functions 01, 02, 03, 04, 05, 06, 15, 16
    Supported data formats 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit float (Big endian, Big endian with byte-swapped, Little endian, Little endian with byte-swapped)
    MODBUS RTU MASTER (RS232)
    Supported baud rates From 300 to 115200
    Supported functions 01, 02, 03, 04, 05 (only for alarms), 06 (only for alarms), 15 (only for alarms), 16 (only for alarms)
    Number of data bits From 5 to 8
    Number of stop bits 1 or 2
    Parity None, Even, Odd
    Flow None, RTS/CTS, Xon/Xoff
    Duplex Full duplex
    MODBUS RTU MASTER (RS485)
    Supported baud rates From 300 to 115200
    Supported functions 01, 02, 03, 04, 05 (only for alarms), 06 (only for alarms), 15 (only for alarms), 16 (only for alarms)
    Number of data bits 8
    Number of stop bits 1
    Parity None, Even, Odd
    Flow None, Xon/Xoff
    Duplex Half duplex
    MODBUS DATA TO SERVER
    Protocol MQTT
    MQTT GATEWAY
    MQTT gateway Allows sending commands and receiving data from Modbus Master through MQTT broker
    MONITORING & MANAGEMENT
    WEB UI HTTP/HTTPS, status, configuration, FW update, troubleshoot, event log, system log, kernel log
    FOTA Firmware update from Cloud Platform(M2M Platform, Remote Management System), automatic notification
    MQTT MQTT Broker, MQTT publisher
    JSON-RPC Management API over HTTP/HTTPS, Customized
    MODBUS MODBUS TCP status/control
    RMS Remote Management System (RMS)
    IoT PLATFORMS
    Cloud of Things Allows monitoring of: Device data, Mobile data, Network info, Availability
    ThingWorx Allows monitoring of: WAN Type, WAN IP Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
    Cumulocity Allows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP
    SYSTEM CHARACTERISTICS
    CPU 560 MHz
    RAM 128 MB
    FLASH memory 16 MB
    FIRMWARE / CONFIGURATION
    WEB UI Update FW from file, configuration profiles, configuration backup, restore point
    FOTA Update FW/configuration from Cloud Platform(M2M Platform, Remote Management System)
    RMS Update FW/configuration for multiple devices
    Keep settings Update FW without losing current configuration
    FIRMWARE CUSTOMIZATION
    Operating system LEDE (OpenWrt based Linux OS)
    Supported languages Busybox shell, Lua, C, C++
    Development tools SDK package with built environment provided
    POWER
    Connector DC Round Hole Power (support multiple plug standard and USB plug)
    Input voltage range 7.5 – 32 V DC (Round Hole Interface), reverse polarity protection, surge protection
    Power consumption < 3 W

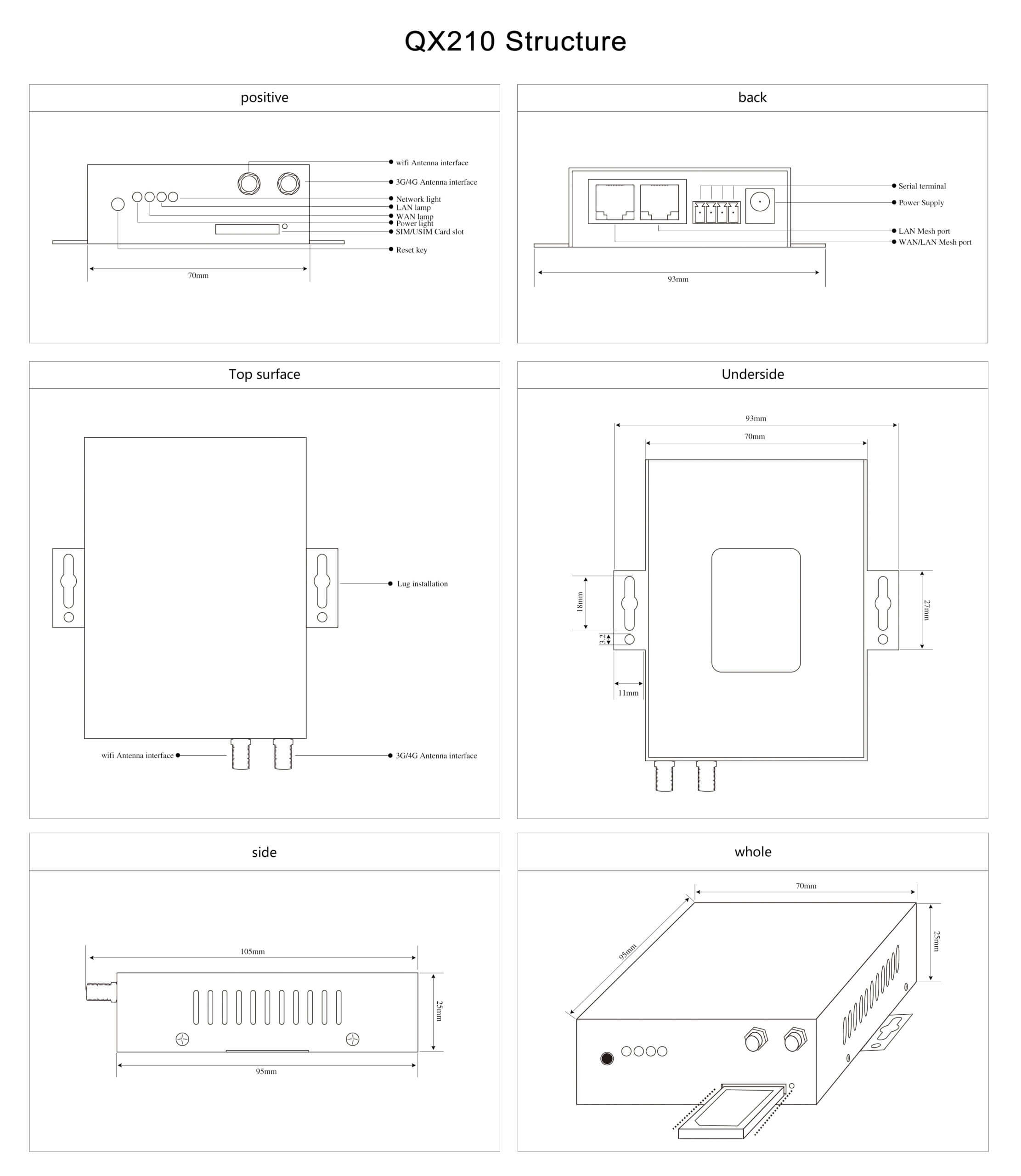

    PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)
    Ethernet 2 x RJ45 ports, 10/100 Mbps
    Serial 1 x RS232/RS485, 3 pin industrial socket
    Status LEDs 1 x connection strength & status LEDs, 1 x WAN status LED, 1 x LAN status LED, 1 x Power LED
    SIM 1 x SIM slot (Mini SIM – 2FF, 25mm x 15mm), 1.8 V/3 V, external SIM holder
    Power Round Hole DC connector
    Antennas 1 x SMA for Mobile, 1 x SMA for WiFi antenna connectors
    Reset Reset/restore to default button
    PHYSICAL SPECIFICATION
    Casing material Metal housing
    Dimensions 95 x 70 x 25 mm (L x W x H)
    Weight 210 g
    Mounting options Desktop or wall mount
    OPERATING ENVIRONMENT
    Operating temperature -30 °C to 70 °C
    Operating humidity <95% non-condensing
    Ingress Protection Rating IP41
    REGULATORY & TYPE APPROVALS
    Regulatory CE, RoHS, Wi-Fi Certified, CCC, FCC(Customized)
    Operator Global, customize for your country's cellular bands
    Standards EN 301 489-1 V2.2.0:2017; EN 301 489-17 V3.2.0:2017; EN 300 328 V2.1.1:2016; EN 62311:2008; EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013; IEC 62321:2013/2015. etc.

    Model Part. No Bands Region Serial WiFi GPS
    QX210 QX210-N2 4G-FDD-LTE:B2/4/5/12/13/17/25/26; 4G-TD-LTE:B41; 3G-UMTS:B2/4/5; 3G-EVDO:BCO/1; 2G-GSM:B2/B5; North America RS232
    QX210-NW2 RS232
    QX210-NG2 RS232
    QX210-NWG2 RS232
    QX210-N4 RS485
    QX210-NW4 RS485
    QX210-NG4 RS485
    QX210-NWG4 RS485
    QX210-E2 4G-TDD-LTE:B38/B40/B41; 4G-FDD-LTE:B1/B3/B5/B7/B8/B20; 3G-UMTS:B1/B5/B8; 2G-GSM:B3/B8; Europe,Middle East, Africa,Korea, Thailand,Southeast Asia RS232
    QX210-EW2 RS232
    QX210-EG2 RS232
    QX210-EWG2 RS232
    QX210-E4 RS485
    QX210-EW4 RS485
    QX210-EG4 RS485
    QX210-EWG4 RS485
    QX210-A2 4G-TDD-LTE:B40; 4G-FDD-LTE:B1/B2/B3/B4/B5/B7/B8/B28; 3G-UMTS::B1/B2/B5/B8; 2G-GSM:B2/B3/B5/B8; Australia,New Zealand,Latin America,Taiwan RS232
    QX210-AW2 RS232
    QX210-AG2 RS232
    QX210-AWG2 RS232
    QX210-A4 RS485
    QX210-AW4 RS485
    QX210-AG4 RS485
    QX210-AWG4 RS485
    Note:
    1. Support global country frequency bands customized, if request other frequency band model, please consult sales person (sales@keennew.com).
    2. Please specify when order if request other optional features

    Specification/Datasheet: QX210 Industrial 4G Cellular Router Specification
    Installation Quick Guide: QX210 Installation and Configuration Quick Guide
